Hygienic Scale Design Principles

Certification

Some directives, such as in Europe, for example, the EHEDG have developed a certification system and issue hygienic design certificates for individual structural elements as well as for entire facilities. Individual structural elements and system components, which are subject to particularly stringent purity requirements can therefore be certified if they meet the hygienic design guidelines and pass specified cleaning tests. Questions relating to design, the materials used and the cleanability of components must be answered in accordance with the guidelines.

Certifications for entire facilities (HDW certified systems) assess the degree of implementation of the hygienic design requirements across the entire facility. In terms of scoring, all components are assessed with regard to their degree of fulfillment at structural element level. The higher the degree of hygienic implementation, the lower the risk of food contamination and the better the ability to clean the facility. Certification according to the design guidelines for hygienic design is not yet legally required but is instead carried out on a voluntary basis.

Worker in protective safety gear cleans a floor scale that has a lift mechanism to make cleaning easier

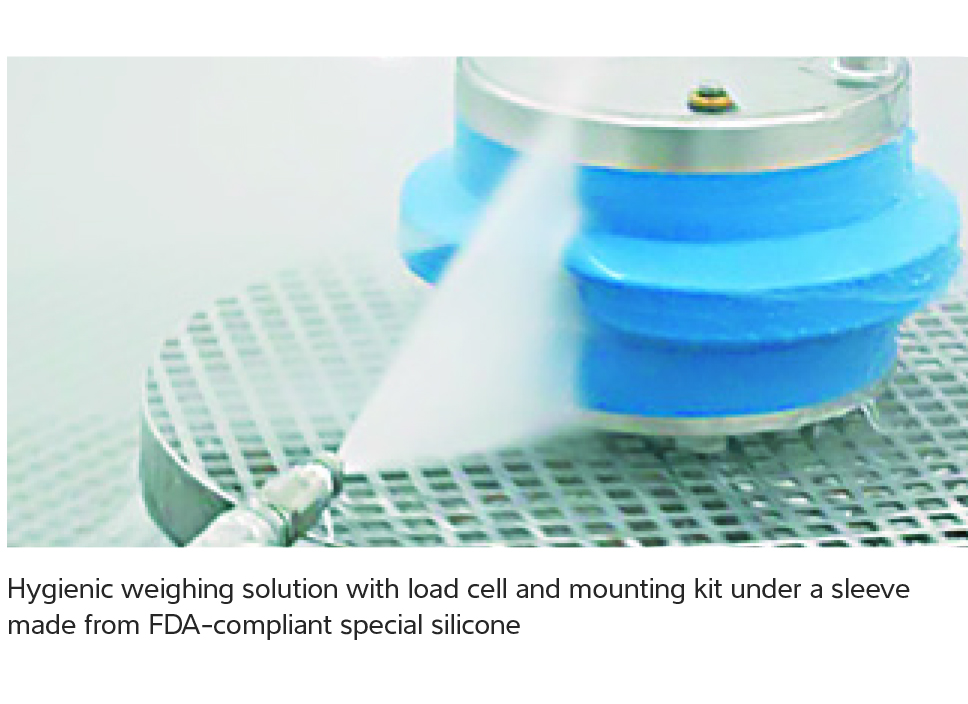

Pressurized water is sprayed at a piece of weighing equipment that is covered by a protective sleeve

Cleanability

The quality of cleanability is contingent on the design of structural elements, components and facilities. It is important to exclude residues of contaminants, which result in the growth of micro-organisms. Areas with zones which are structurally difficult to clean should also be avoided as cleaning these is associated with high expenditure. The result of an easy-to-clean facility is increased hygiene and reduced cleaning expenditure (cost savings, environmental protection). For this, no distinction is made between the cleaning methods. The same degree of cleanliness should be achieved for dry cleaning as for wet cleaning.

Tools for dry cleaning:
■ cloths
■ brushes
■ vacuum cleaner

Tools for wet cleaning (IP54/IP65):
■ damp cloths
■ chemicals

Tools for wet cleaning (IP69):
■ high-pressure cleaner
■ chemicals

Comparison of 2 types of stainless steel load cells

Materials Science

The selection of materials plays an important role in developing components, structural elements and production facilities. Although stainless steel is commonly considered to be the best choice of hygienic materials, even high-quality stainless steels can corrode, for example, in chemically aggressive environments.
Even the chlorides contained in cleaning agents may trigger the corrosion process. The corrosion depends on the quality of the material and its condition or, more precisely, the smoothness and flawlessness of the surfaces. The smoother the surface the better. The EHEDG recommends passivation, e.g. by means of electropolishing, and defines a mean roughness depth of max. 0.8 µm for this.

A dynamic checkweigher belt that was designed to be disassembled easily without tools

Access

Many production facilities in the food industry are cleaned without dismantling. Access to problem areas should therefore be provided. Here, the economically and technically expedient and justifiable expenditure for achieving the required level of cleanliness must be defined. In areas which require wet cleaning for production reasons, partial dismantling of the facilities for cleaning purposes can’t be be avoided. Therefore, it is necessary that disassembly can be carried out easily, preferably without tools.

Cost Considerations

The benefits of hygienic design are often offset by increased capital expenditure. However, the comparably increased costs for equipment and facilities using a hygienic design should be addressed in relation to their associated benefits.

Associated benefits of hygienic design:

  • Time saving when cleaning the facility
  • Reduced cleaning agents
  • Lower energy requirement
  • Lower staff and maintenance costs
  • Simple fulfillment of/compliance with regulations/requirements

Considering all factors neutrally proves that hygienic design facilities are a long-term investment. They ensure both optimal line efficiency and environmental protection. The TCO (total cost of ownership) is therefore comparatively lower for facilities using hygienic design as not only the purchase costs are included in this statement of account but also all of the expenditure associated with subsequent use.

Savings associated with hygienic design facilities:

  • Resource costs (water, waste water, chemicals, etc.)
  • Energy costs (electric, thermal)
  • Maintenance/repair costs
  • Staff costs
  • Minimized risk of production failure, rejection etc.

Hygienic design has a positive influence on many areas of the TCO, providing safe food with a good and positive image while at the same time protecting the environment.

Factors for Hygienic Design

For the development and construction of structural elements, machines and production facilities, hygienic design is the design principle used to ensure that designs satisfy cleaning regulations as well as being easy to clean.

The following manufacturing levels are affected by this:

  • Design
  • Material selection (material pairings)
  • Manufacturing processes
  • Surface treatment
  • Connection techniques

The design principles for hygienic design define the following parameters:

Points to consider include a high surface quality, food-safe (suitable) materials and a corresponding environment for food production, which also includes the soil condition.

  • No horizontal surfaces
  • Smooth surface finish/self-draining surfaces
  • No sharp corners/angles (radii min. 3 mm, better >6 mm)
  • No unnecessary holes
  • No avoidable contact surfaces, screws and gaps
  • No hollow part
  • No dead spaces
  • Few structural elements
  • Open design
  • High ground clearance
  • Easy inspection
  • Good accessibility

Furthermore, the surface must meet the following requirements. Material selection is an important factor for this: the use of stainless steel is often considered to be hygienic design. Even though stainless steel is a better choice than standard steel, its suitability depends on the application and design.

The following parameters must be considered for surfaces:

  • Corrosion resistance
  • Water impermeability
  • No cracks or crevices
  • Flawlessness of the surface (Ra <0.8 µm)
  • Resistance, durability (maintenance-free)
  • Quality of the connection points, in particular welded joints

In terms of risk assessment, hygienic design distinguishes between surfaces which come into contact with the product, and those which do not.

A hygienic design assessment is therefore possible depending on the areas.

Stainless steel round corners
Equipment designed with no hollow spaces
Equipment designed with good accessibility
Equipment designed with high ground clearance
